Custom PEEK Extrusion Dies for Tubes, Rods and Sheets

High-Temperature Extrusion Tooling for PEEK Processing

PEEK (Polyether Ether Ketone) is a high-performance engineering thermoplastic known for its excellent thermal resistance, mechanical strength, chemical resistance, and dimensional stability. Processing PEEK into tubes, rods, and sheets requires carefully designed extrusion tooling capable of maintaining dimensional accuracy and reliable performance under demanding high-temperature conditions.

Skyjet Polymer manufactures customized high-temperature polymer extrusion dies for PEEK and other engineering plastics. Our tooling solutions are developed according to customer drawings, product dimensions, processing methods, material requirements, and production conditions.

With extensive experience in high-temperature tooling and cooperation with Fortune Global 500 companies, we understand that a reliable extrusion die requires more than precise dimensions. Material selection, machining accuracy, surface finishing, heat treatment, and nitriding must work together to achieve the required performance.

Our High-Temperature Tooling Expertise

1. Extensive Experience in High-Temperature Mold and Die Manufacturing

High-temperature tooling requires a detailed understanding of material behavior, manufacturing processes, dimensional stability, and operating conditions.

Our experience in high-temperature tooling, including projects for Fortune Global 500 companies, has strengthened our focus on manufacturing consistency, dimensional accuracy, and attention to detail.

We approach each tooling project with a commitment to precision and continuous improvement, carefully evaluating the technical requirements before manufacturing begins.

2. Precision Machining and Surface Finishing

Precision machining is essential for extrusion dies used to produce PEEK tubes, rods, and sheets. Small deviations in die geometry or surface condition can affect material flow, product dimensions, and surface quality.

We pay close attention to critical dimensions, concentricity, alignment, surface finish, and the quality of machined features. Polishing and other finishing operations are selected according to the die design and application requirements.

Our objective is to produce tooling that meets the specified drawing requirements and supports stable, repeatable extrusion production.

3. Carefully Developed Heat Treatment and Nitriding Processes

Heat treatment and nitriding are critical considerations in the manufacture of many high-temperature extrusion dies. An inappropriate process can contribute to distortion, dimensional changes, inadequate surface hardness, or reduced service life.

We evaluate heat treatment and surface hardening requirements according to the selected tool steel, die geometry, operating temperature, wear conditions, and required service performance.

The objective is to achieve an appropriate balance of dimensional stability, surface hardness, wear resistance, and substrate toughness. Heat treatment and nitriding parameters must be selected for the specific tooling material and application rather than applied as a universal recipe.

How Do We Manufacture a High-Quality High-Temperature PEEK Extrusion Die/Mold/Tooling?

Producing a reliable high-temperature extrusion die requires several important factors to be considered together.

Step 1: Select the Right Tool Steel

Tool steel selection is the foundation of high-temperature die performance. The material must be suitable for the intended operating temperature, mechanical loading, wear conditions, and required dimensional stability.

Factors to consider include:

• Hot-strength and tempering resistance
• Wear resistance and toughness
• Dimensional stability during heat treatment
• Compatibility with the intended nitriding process
• Corrosion resistance where relevant to the processing environment

The best material depends on the specific application, operating conditions, and expected service life. There is no single tool steel that is optimal for every PEEK extrusion die.

Step 2: Achieve Precision Machining and Proper Polishing

Accurate machining establishes the die geometry, while suitable surface finishing helps control friction and material flow.

Important considerations include:

• Dimensional accuracy and geometric tolerances
• Concentricity and alignment of critical features
• Surface roughness and polishing requirements
• Uniformity of flow channels and forming surfaces
• Inspection of critical dimensions before and after finishing

The required surface finish should be determined by the die design and the quality requirements of the extruded product.

Step 3: Develop the Appropriate Heat Treatment Process

Heat treatment is one of the most important stages in manufacturing high-temperature tooling. The process must be matched to the selected steel grade, initial material condition, component geometry, and final performance requirements.

Important considerations include:

• Appropriate hardening and tempering procedures
• Control of thermal distortion and dimensional changes
• Achieving the required hardness without compromising toughness
• Allowances for finishing operations after heat treatment
• Verification of final hardness and critical dimensions

A heat treatment process should be developed and validated for the specific tool steel and die design. Simply specifying a high hardness value does not guarantee good tooling performance.

Step 4: Optimize the Nitriding Process

Where appropriate, nitriding can improve surface hardness and wear resistance. However, the process must be compatible with the selected tool steel and its previous heat treatment.

Key factors include:

• Nitriding temperature and treatment duration
• Surface hardness and case depth requirements
• Compound-layer characteristics and brittleness control
• Dimensional changes during treatment
• Compatibility with subsequent finishing and polishing

For tooling operating at elevated temperatures, the nitriding process must be evaluated against the actual service conditions. Excessive or unsuitable treatment can adversely affect dimensional accuracy or surface integrity.

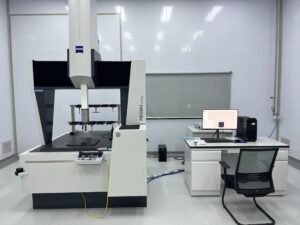

Step 5: Inspect and Verify the Finished Die

Final inspection helps confirm that the tooling meets the agreed technical specifications.

Depending on the project, inspection may include:

• Critical dimensions and geometric tolerances
• Surface finish and visible defects
• Hardness verification
• Assessment of treatment results where specified
• Documentation of inspection results

Where required, inspection and testing can be agreed upon before production begins.

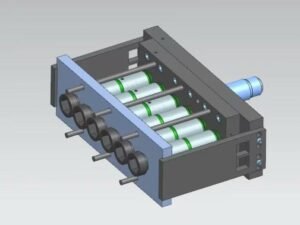

Customized Extrusion Dies for Different PEEK Products

PEEK Tube Extrusion Dies

Customized tooling for PEEK tubes, with design considerations based on tube diameter, wall thickness, concentricity, and dimensional requirements.

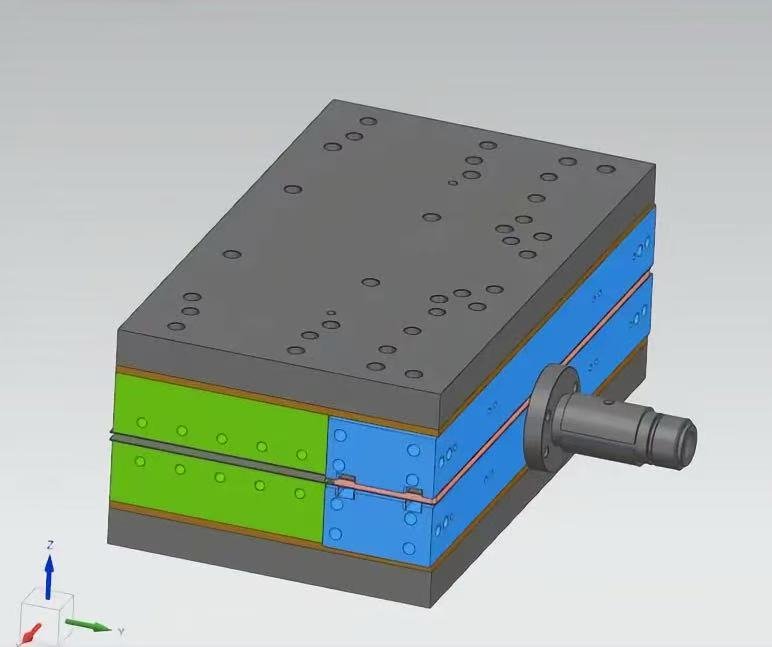

PEEK Rod Extrusion Dies

Tooling designed around rod diameter, dimensional tolerance, surface quality, and the intended extrusion process.

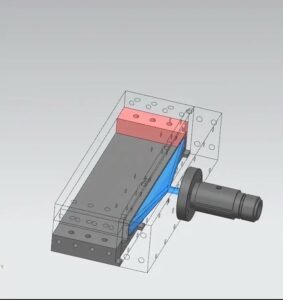

PEEK Sheet Extrusion Dies

Customized tooling for PEEK sheet production, with attention to die geometry, flow distribution, thickness consistency, and surface requirements.

The appropriate die design depends on the extrusion method, machine configuration, material grade, and production conditions.

Custom PEEK Extrusion Tooling Based on Drawings

Skyjet Polymer supports customized extrusion die projects based on drawings, samples, and technical specifications.

To evaluate your project, please provide:

• Product type: PEEK tube, rod, or sheet
• Product dimensions and required tolerances
• Extrusion machine and process information
• Tool steel or material requirements, if specified
• Operating temperature and relevant process conditions
• Expected production volume and tooling performance requirements

Our team can review the requirements and discuss a suitable tooling solution for your application.
