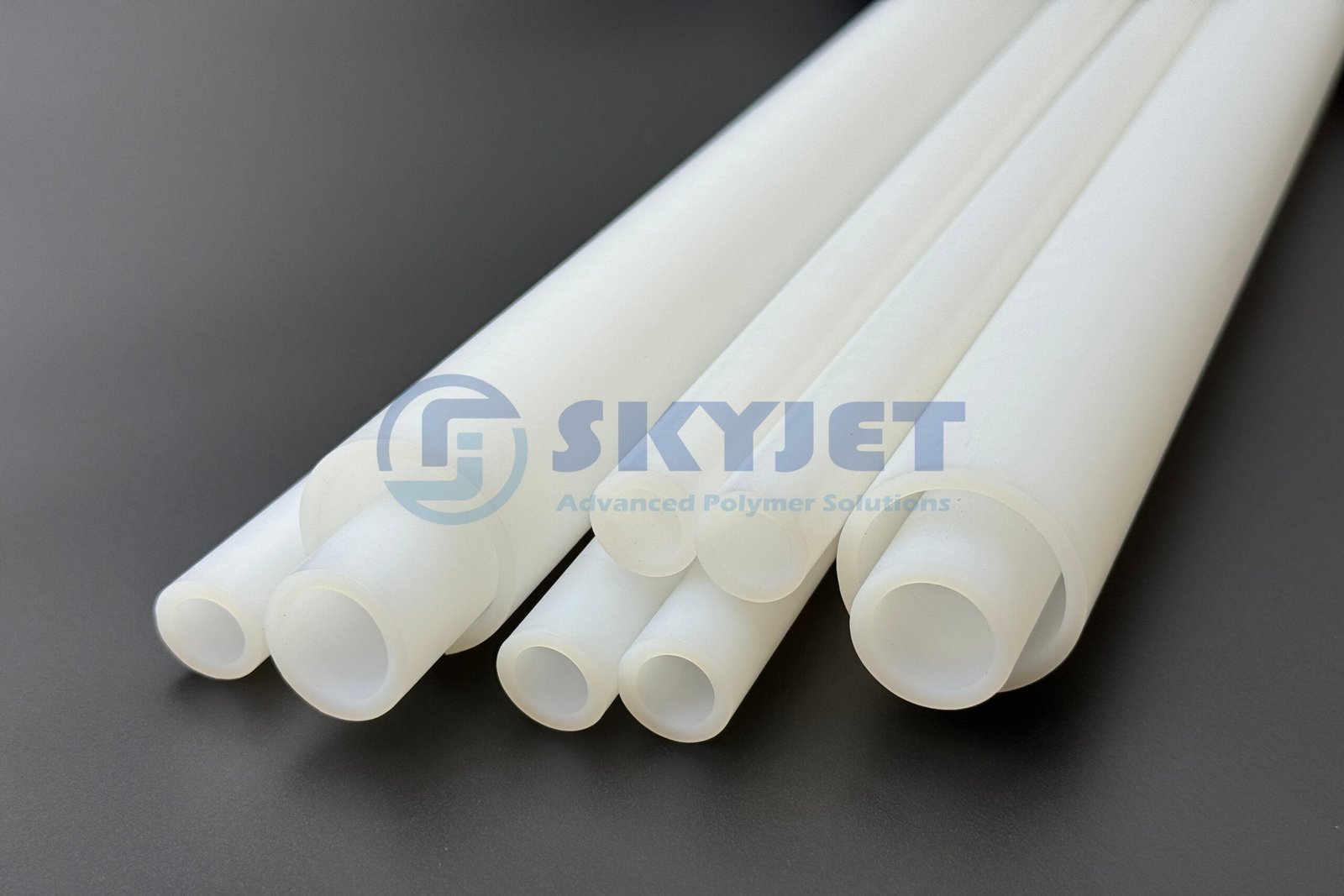

Ram Extruded UHMWPE Tubes
Ram Extruded UHMWPE Tubes
Material: GUR4170®/GUR4150®/GUR4152®
Processing method：Ram Extrusion
Outer diameter range：10mm-300mm
Wall thickness range: 2mm-100mm
Applications: wear liners, bearings, fluid handling
Description
Looking for extreme wear resistance and low friction performance? Our GUR4150® 9.2 Million Molecular Ram Extruded UHMWPE Tubes are your ideal solution. We have moved beyond conventional screw extrusion, exclusively utilizing Ram Extrusion technology. This advanced process ensures the polymer chains are not subjected to shear degradation during processing, resulting in superior retention of molecular weight, better molecular orientation, and exceptional overall performance.
Key Specifications & Advantages:
- Advanced Process: Manufactured via Ram Extrusion technology, delivering performance superior to conventional screw-extruded products.
- Premium Material: Produced from the industry-renowned GUR 4150® resin, guaranteeing top-tier wear and impact resistance.
- Flexible Production: Standard Outer Diameter range from Φ10mm to Φ200mm, with rapid customization available for various sizes based on your drawings.
- Reliable Supply: Our optimized production flow ensures efficient and stable output to meet your project timelines.
Ram Extruded UHMWPE Tubes Specifications’ Table :
| OD(mm) | ID(mm) | Wall Thickness(mm) | Length(mm) |
|---|---|---|---|
| 18 | 12 | 3 | 1000 |
| 20 | 14 | 3 | 1000 |
| 24 | 18 | 3 | 1000 |
| 27 | 21 | 3 | 1000 |
| 30 | 24 | 3 | 1000 |
| 33 | 27 | 3 | 1000 |
| 37 | 31 | 3 | 1000 |
| 42 | 36 | 3 | 1000 |
| 45 | 39 | 3 | 1000 |
| 50 | 44 | 3 | 1000 |
