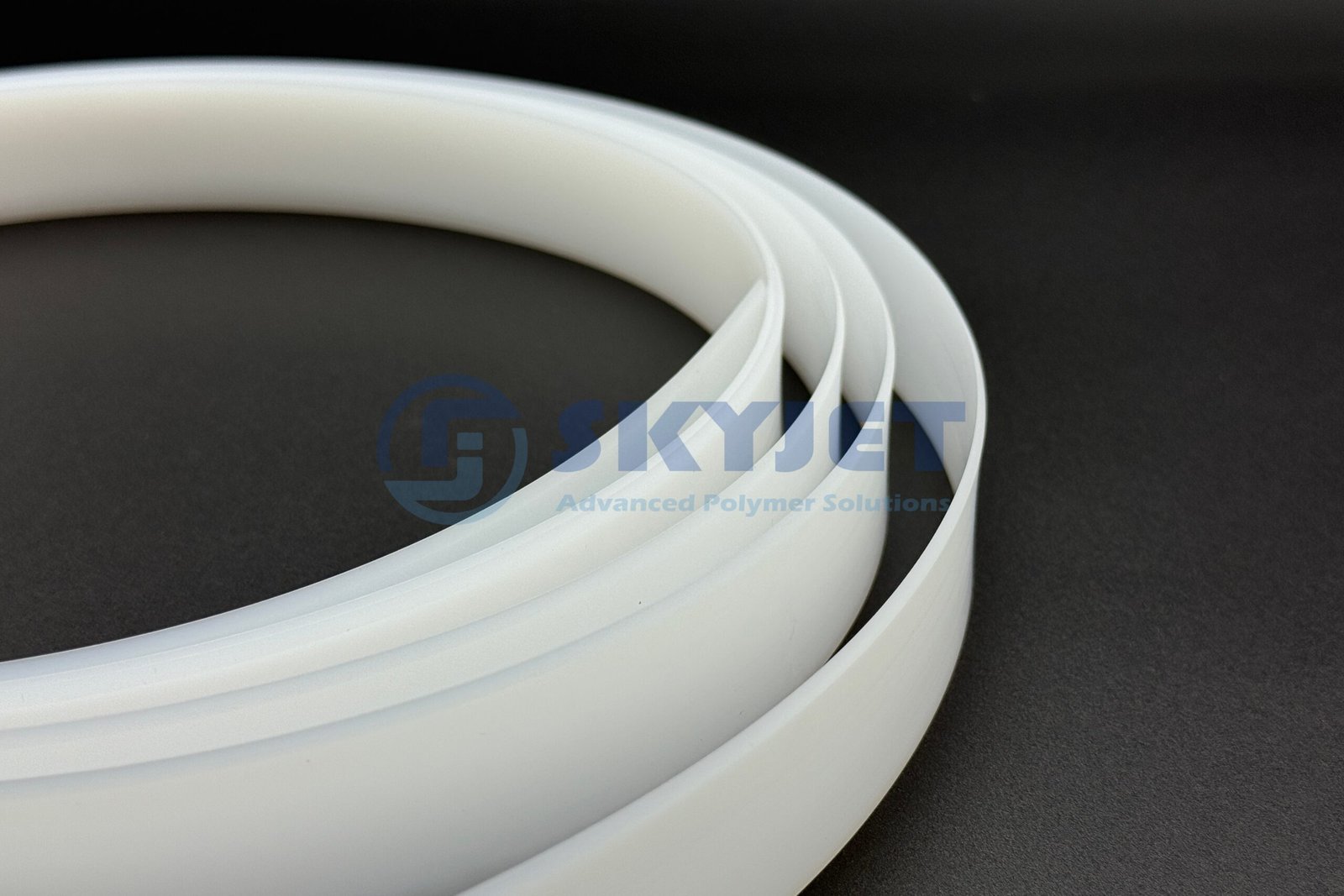

Precision Skived UHMWPE Sheet: Unmatched Flatness & Consistency from Advanced Compression Molding & Skiving

Introducing our Skived UHMWPE Sheet, the ultimate solution for applications demanding exceptional surface finish, tight tolerances, and uniform mechanical properties. This product is not simply cut from a block; it is engineered through a sophisticated two-stage Compression Molding followed by Precision Skiving (Peeling) process. This specialized method delivers performance and quality unattainable by conventional extrusion or saw-cutting techniques.

Superiority Through Advanced Manufacturing: Compression Molding + Skiving

Our process is designed to maximize the inherent benefits of UHMWPE:

Stage 1: Compression Molding
We begin with premium UHMWPE resin, which is meticulously compression molded under precise heat and pressure. This method creates a billet with:
- Exceptional Homogeneity: Eliminates voids, air pockets, and internal stresses commonly found in extruded sheets.
- Optimal Molecular Alignment: Forms a highly consistent, isotropic structure ideal for the subsequent skiving process.
- Maximum Density: Achieves the theoretical density of UHMWPE (~0.935 g/cm³), ensuring peak wear and impact resistance.
Stage 2: Precision Skiving (Peeling)
The molded billet is then mounted on a precision lathe, where a sharp blade “peels” or “skives” off a continuous, uniform sheet. This critical step provides decisive advantages:
- Superior Surface Finish: Produces an exceptionally smooth, ready-to-use surface directly from the process, minimizing the need for secondary finishing.
- Unrivaled Thickness Consistency: Maintains tolerances within ±0.1mm across the entire sheet and batch-to-batch, crucial for precision assembly and gasketing.
- Large Format & Flexibility: Allows for the production of very wide sheets (beyond standard extruded widths) and extremely long continuous lengths.
- Preserved Material Integrity: The low-stress cutting action of skiving prevents heat build-up and polymer degradation, maintaining the full chain length and properties of the UHMWPE.

Technical Specifications & Capabilities

Material: 100% Virgin UHMWPE (GUR types available upon request).
Key Properties: Density: 0.93-0.935 g/cm³ | Melting Point: 130-136°C | Exceptional Abrasion Resistance (ASTM D1044) | Very Low Coefficient of Friction | High Impact Strength.
Available Thickness: From 0.5 mm (0.02″) up to 10 mm (0.4″) via skiving. (Thicker slabs available via direct molding).
Standard Sheet Sizes: Customizable. We can produce sheets up to 1500mm in width and several meters in continuous length.
Customization: We specialize in custom sizes, thicknesses, and can provide sheets with protective film. Die-cutting and machining services are available.

Primary Application Industries

This product is ideal for high-precision, low-friction, and wear-resistant applications:

Precision Machining & Fabrication: Perfect base material for CNC machining of custom gears, bushings, wear strips, and liner components where tight tolerances are critical.
Conveying & Material Handling: Used as ultra-smooth, low-friction liner sheets for hoppers, chutes, and conveyors to ensure efficient material flow.
Food & Pharmaceutical Processing: Meets FDA/USP Class VI requirements for use in contact surfaces, guides, and partitions where hygiene, cleanability, and no contamination are essential.
Automotive & Packaging: Serves as durable wear plates, guide rails, and sliding components in automated machinery.
Marine & Water Management: Used as abrasion-resistant liner in docks, boat fenders, and water slides.

Why Choose Our Skived UHMWPE Sheet?

For engineers and buyers who cannot compromise on quality, our Skived Sheet offers a tangible upgrade. It combines the bulk material excellence of compression-molded UHMWPE with the dimensional precision and superb finish of skiving. This results in a product that ensures reliability, reduces post-processing time, and extends service life in your most demanding applications.

Contact us today for technical data sheets, samples, or to discuss how our Skived UHMWPE Sheets can be customized for your specific project needs.
